Creating a Pattern Display Circuit with Vitis HLS High-Level Synthesis

Introduction

This post continues from the previous one, documenting the practical application of “High-Level Synthesis Applications” from Chapter 11-1 onward in “FPGA Programming Complete Guide, 2nd Edition”.

Environment

FPGA: Xilinx Zybo Z7-20
OS: WSL2 Ubuntu 20.04
Development Environment: Vivado ML edition 2022.1 Linux

Objective

Using Vitis HLS, create a pattern display circuit through high-level synthesis.

Implementation

Project Creation

Launch Vitis HLS and add Source and Test Bench files
Execute “Build selected file”
Perform “C Synthesis”

Below is an excerpt of the test bench code using the patblt function to draw rectangles and write to an imagedata.raw file:

int main() {
    for (int i = 0; i < XSIZE * YSIZE; i++) {
        VRAM[i] = 0;
    }

    patblt(VRAM,   0,   0, 320, 240, 0x00ff0000);
    patblt(VRAM, 160, 120, 320, 240, 0x0000ff00);
    patblt(VRAM, 320, 240, 320, 240, 0x000000ff);

    FILE *fd = fopen("imagedata.raw", "wb");

    for (int y = 0; y < YSIZE; y++) {
        for (int x = 0; x < XSIZE; x++) {
            int temp = VRAM[y * XSIZE + x];
            fprintf(fd, "%c", (temp >> 16) & 0xff);
            fprintf(fd, "%c", (temp >> 8 ) & 0xff);
            fprintf(fd, "%c", (temp      ) & 0xff);
        }
    }
    fclose(fd);

    return 0;
}

C-RTL Cosimulation

After synthesis completion, execute “Cosimulation”
Choose “Dump Trace: All” in the options and click “OK”
Upon completion, the following summary appears:

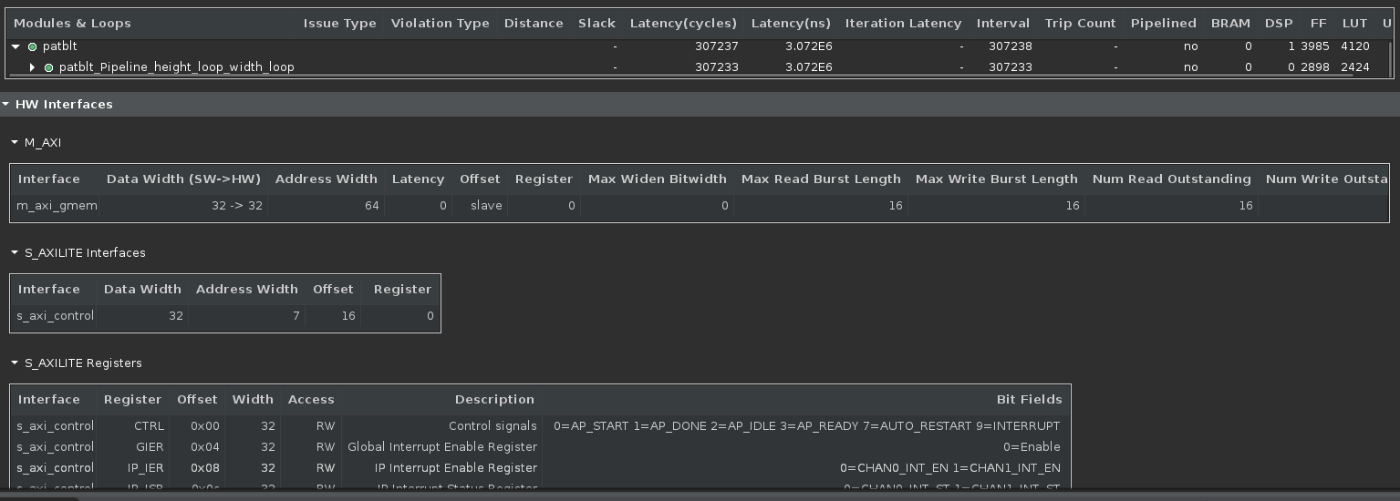

Cosimulation Summary

Select “Open Wave Viewer” to launch Vivado

Waveform Analysis

Simulation finished in approximately 2.732ms
From the waveform, the burst length is confirmed to be 16 (m_axi_gmem_AWLEN[7:0] = 0x0f)
Address (gmem_AWADDR[63:0]) is issued without waiting for the completion of WDATA transfers, indicating overlap transfer (this is difficult to observe clearly due to fixed WDATA values, refer to page 358, “Introduction to AXI Bus” in the book)

Overall waveform: Waveform overview

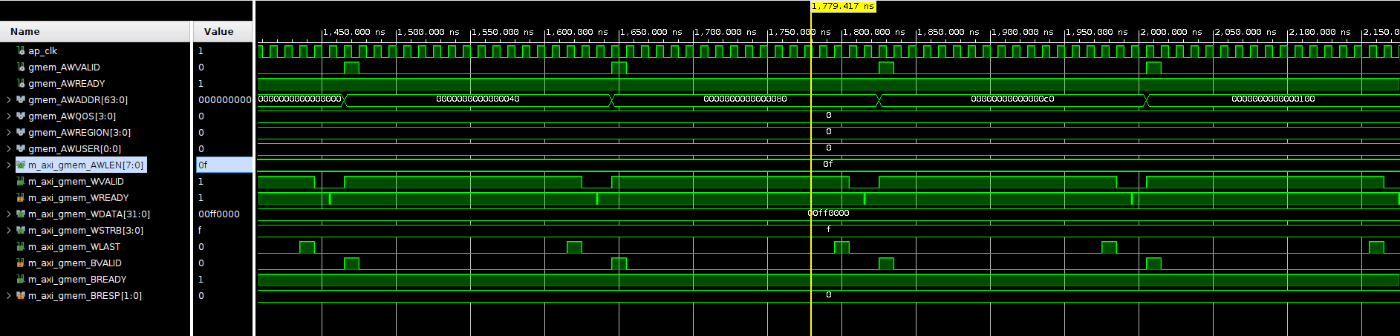

Detailed waveform: Waveform detail

Verification of Saved Image Data

Displaying the saved imagedata.raw confirmed that the intended image is correctly drawn.

Generated image data

IP Generation

Execute “Export RTL” and save as IP

Conclusion

In this post, a simple pattern display circuit was created using Vitis HLS high-level synthesis. AXI bus transfer behaviors were validated through waveform simulation, and the generated image data was confirmed to match the intended design. Future work will involve deploying the generated IP onto the actual Zybo Z7-20 FPGA for further verification.
